Free crypto liquidity heatmap, footprint chart, CVD & fair value gaps
The order-flow tools traders pay monthly for — a Bookmap-style heatmap, volume footprint, CVD and institutional FVG detection — free on one live chart for 30 crypto futures markets plus XAUUSDT gold.
- Live Binance Futures data
- 30 coins + XAUUSDT gold
- Runs in your browser
Six order-flow views, zero subscriptions
Heatmap, footprint, CVD and fair value gaps normally live in different paid tools. Here they share one price scale, so you can see liquidity, aggression and imbalance line up.
Liquidity heatmap (Bookmap-style)
Every resting limit order in the Binance Futures book, painted over time behind the candles. Thin liquidity is dark blue, heavy liquidity glows yellow and white, so stacked bids, spoofed walls and pulled orders are visible at a glance.
Footprint chart (bid × ask)
Zoom into any candle to read the aggressive sell × buy volume traded at each price. Diagonal 3:1 imbalances are bolded, stacked imbalances counted and the point of control boxed in gold.
CVD & delta per bar
Cumulative volume delta and per-bar delta panes under the price chart show whether buyers or sellers are really driving the move — and spot absorption when price and CVD disagree.
Fair value gaps with an institutional score
Three-candle FVGs are detected automatically and scored 0–100 on displacement vs ATR, volume vs average, delta with the move and the footprint inside the gap. Each gap is tracked live: open, tested, held, filled or broken.
Big-trade bubbles
One-second bursts of aggressive market orders are drawn as bubbles sized by volume — green when buyers lift the offer, red when sellers hit the bid.
Liquidity walls & live book
The largest bid and ask walls are marked on the chart and a live depth profile runs down the right edge, aligned to the price scale.
From liquidity to entry in four reads
- 1
Pick a coin and timeframe
Choose any of 31 markets — Bitcoin, Ethereum, Solana, XAUUSDT gold and the rest — on 1m, 5m, 15m, 1H or 4H.
- 2
Find the liquidity
Bright heatmap bands are where size is resting. Price is often drawn to them, then either absorbed or rejected.
- 3
Read the footprint
When price reaches a level, zoom in: stacked buy imbalances and positive delta mean buyers are stepping in; the opposite means sellers are in control.
- 4
Use the gaps as context
High-score open FVGs near price are zones where an imbalance was left behind. The side panel tells you who defended the gap on its first retest.
Every panel of the order-flow tool, explained
Real screenshots from a live BTCUSDT session, with what each part shows and how traders actually use it. If a term is new to you, the glossary links go deeper.
The workspace at a glance
Everything sits on one screen. Across the top: the market picker (search any of the supported coins or XAUUSDT gold), the timeframe (1m, 5m, 15m, 1H, 4H), a toggle for each layer and the Settings menu. The live price and a connection status sit on the right.
The big area is the chart. Candles are drawn on top of the liquidity heatmap, with fair value gaps, walls and big-trade bubbles layered in. Underneath are two panes: CVD and delta per bar. A thin live order book runs down the right edge of the chart, and the side panel on the far right lists the gaps near price with a written footprint read for each one.
- Layers: Heatmap, Big trades, Footprint, FVG, 50% line and Walls can each be switched on or off.
- Hover any candle to see its open, high, low, close, volume, delta and CVD in the readout at the top-left of the chart.
- Scroll to zoom and drag to pan. Zoom in far enough and each candle turns into a footprint.

Liquidity heatmap, walls and big trades
The coloured background is the Binance Futures order book recorded once a second for the last hour, about 2% either side of price. Every cell is a price where limit orders were resting: dark blue is thin, cyan and yellow are heavier, and white is where the biggest size sits. A bright horizontal band that stays lit is a liquidity wall.
The tool also marks the three largest bid and ask walls with a dashed line and a label showing the price and the size, so you do not have to guess which band matters. The bubbles are one-second bursts of aggressive market orders, sized by volume: green when buyers lifted the offer, red when sellers hit the bid.
- Wall holds while big red bubbles print into it, and price stops falling: buyers are absorbing the selling.
- Wall disappears a moment before price touches it: it was never real support. That is often spoofing.
- Big green bubbles punch through an ask wall: a breakout with real force behind it.

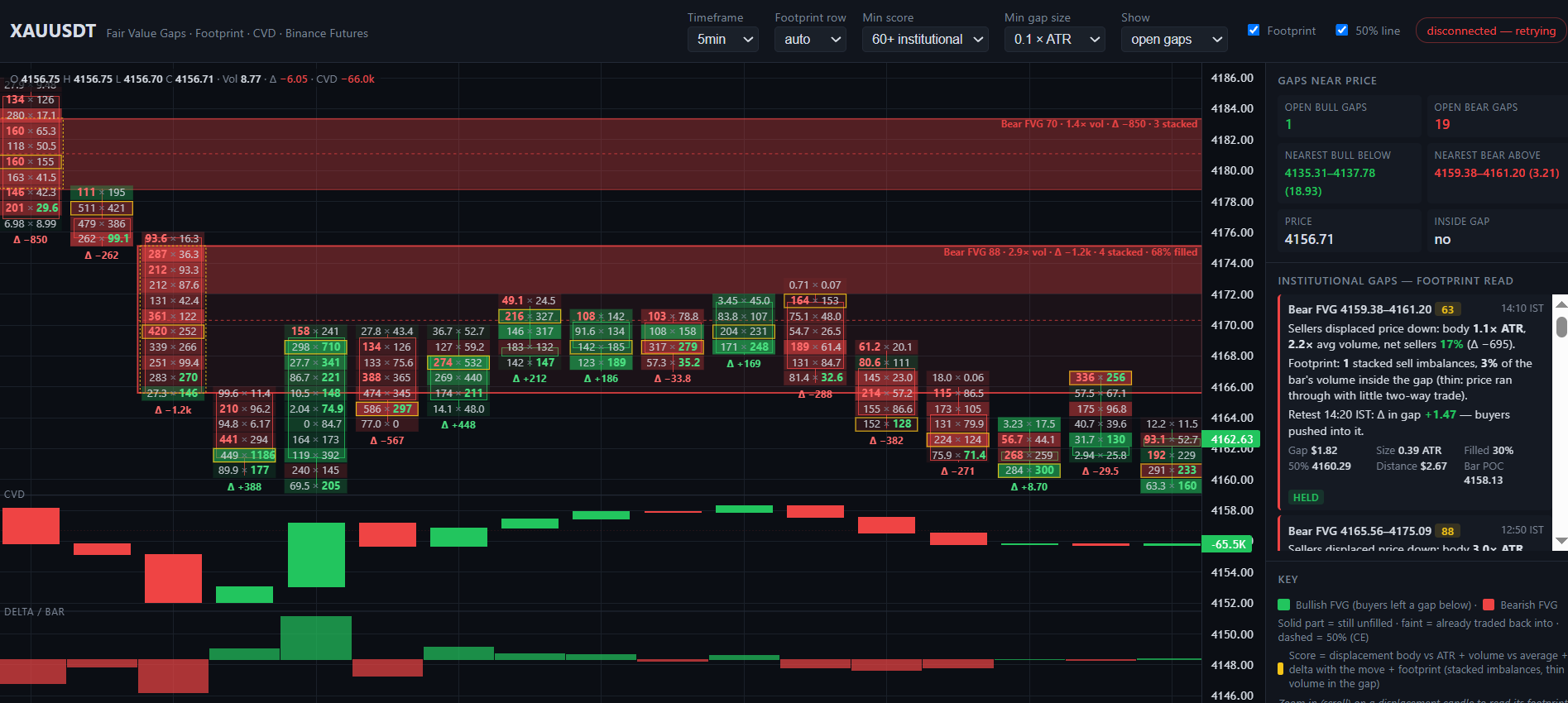

Footprint chart: what traded inside each candle
Zoom in and each candle opens up into rows. Every row reads sells × buys: the volume sold with market orders at that price on the left, the volume bought with market orders on the right. The bigger number tells you which side was more aggressive at that exact level.
Bold numbers are diagonal imbalances, where one side traded at least three times more than the other side one row away. Three or more in a row are stacked imbalances, one of the clearest signs that someone was crossing the spread level after level. The gold box marks the point of control, the single price where the candle did the most business.
- Row size follows your zoom automatically, or set a fixed size in Settings.
- The footprint is built from the last 40,000 trades when you open the page and keeps filling while the tab stays open.
- Tiny numbers at a candle's extreme high or low mean aggression ran out there: exhaustion.

CVD and delta per bar
Delta is aggressive buy volume minus aggressive sell volume for one candle; the histogram at the bottom shows it bar by bar, green for net buying and red for net selling. CVD, cumulative volume delta, is the running total of those bars, drawn as the pane above it.
When price and CVD move together, the move is being driven by real aggression. The interesting moments are when they disagree: price makes a new high while CVD does not (buyers are tiring), or CVD dives on heavy selling while price refuses to drop (someone is absorbing it).

Fair value gaps on the chart
A fair value gap is a three-candle pattern where the middle candle moves so fast that the wicks of the first and third candles do not overlap. That range traded in one direction only, and price often comes back to test it. Bullish gaps are drawn in green, bearish gaps in red.
Each gap is drawn as a zone with a dashed 50% line inside it, the level ICT traders call consequent encroachment (CE). The solid part is still unfilled; the faded part is where price has already traded back in. Each label shows the gap's score, volume against average, delta, stacked imbalances and how much of it has been filled.
- Open: price has not come back yet.
- Tested: price is back inside the gap.
- Held: price dipped in and was pushed back out, so the gap was defended.
- Filled: price traded all the way through it.
- Broken: a candle closed beyond it, so the gap failed.

The institutional gap score (0–100)
Most gaps on a chart are noise, so every gap gets a score out of 100 that measures how forceful the candle that created it was. Gaps scoring 60 or more are labelled institutional and are the ones shown by default; 75 or more are labelled strong. You can change the minimum score in Settings.
If the footprint was not recorded for an older candle, the first three parts are scaled up to 100 so older gaps stay comparable.
| What is measured | Points | Full marks when |
|---|---|---|
| Candle body vs ATR | 25 | Body is at least 1.5× the 14-bar ATR, in the gap's direction |
| Volume vs average | 25 | Volume is at least 3× the 20-bar average |
| Delta with the move | 25 | Net aggressive volume is at least 30% of the bar, same direction |
| Stacked imbalances | 15 | Three or more stacked imbalances in the gap candle |
| Thin trade inside the gap | 10 | Very little of the bar's volume traded inside the gap |
The footprint read: every gap explained in plain English
The side panel turns each gap into a short written read, so you do not have to work it out from the chart. Here is how to read one card, top to bottom.
- Header: bull or bear gap, its price range, the score badge and when it formed.
- Displacement: how big the candle body was against ATR, its volume against the average, and what share of its volume was net buyers or net sellers, with the delta.
- Footprint: how many stacked imbalances the candle had, and what percentage of its volume traded inside the gap. Thin means price ran through with little two-way trade (a true gap); heavy means it traded a lot there (less of a gap).
- Retest: the delta traded inside the gap the first time price came back, and who won: buyers defended it, sellers defended it, or the other side pushed into it.
- Numbers: size in ATR, how much has been filled, the 50% price, the distance from current price and the candle's point of control.
- Tags: forming (the third candle is still open), the gap's state, and price inside when price is in the gap right now.

Gaps and liquidity near price
Above the gap list, six numbers summarise the picture around the current price: how many bull and bear gaps are still open, the nearest bull gap below price and the nearest bear gap above it, the total bids and asks resting within 2% of price, and the CVD of all loaded candles.
A short note underneath tells you how long the heatmap has been recording and how far back the footprint goes, so you know how much history you are looking at.

Settings: tune it to the market you trade
Display settings control the footprint row size and heatmap row size (automatic, or a fixed multiple of the tick size) and the heatmap brightness, which helps on very thin or very busy markets.
Fair value gap settings control which gaps you see: the minimum score (all gaps, 40+, 60+ institutional or 75+ strong), the minimum gap size in ATR, and whether to show only open gaps or filled ones too. Your settings are remembered in this browser.

Putting it together: reading one setup
Here is how the pieces combine on a real chart, step by step. This is a way of reading the market, not a trading signal.
- 1At 14:07, sellers push BTC down with a candle 1.5× ATR in size and 73% of its volume net selling. It leaves a bear gap from 84,001 to 84,067, scored 62: just over the institutional line.
- 2Price later rallies back into that gap. On the retest, the delta traded inside the gap is −6.43, so sellers were still the aggressive side there. The card says sellers defended it.
- 3Price closes back below the gap and its state changes to held. That zone now has a proven seller in it, which gives anyone looking for shorts a clear level to lean on, with invalidation above 84,067.
- 4At 14:42 the picture flips: buyers create a bull gap scored 95, with a 2.2× ATR candle on 5.1× average volume and only 2% of its volume traded inside the gap. That is about as clean as a gap gets.
- 5Price is now trading inside that bull gap and sellers are pushing into it (Δ −4.54). Whether it holds like the bear gap did, or breaks, decides the next move. Watch the footprint and the heavy band near 83,900 as it plays out, and practise this kind of read on a paper trading account before risking real money.
Free here vs a typical paid order-flow platform
| The Tradeskill | Typical paid tool | |
|---|---|---|
| Price | Free, no trial clock | Monthly subscription |
| Install | Runs in your browser | Desktop download |
| Crypto data | 31 Binance Futures markets included | Often a paid data add-on |
| Fair value gap scoring | Built in, with footprint read | Separate indicator, if any |
| Paper trade what you see | Same account, $20,000 virtual | Separate platform |
Free heatmap & footprint for 31 markets
Every crypto coin listed on The Tradeskill, plus gold through the XAUUSDT perpetual. Crypto and gold only — stocks have no free public order book.
Gold
Altcoins
- Avalanche AVAXUSDT
- Chainlink LINKUSDT
- TRON TRXUSDT
- Polkadot DOTUSDT
- Litecoin LTCUSDT
- Bitcoin Cash BCHUSDT
- NEAR Protocol NEARUSDT
- Sui SUIUSDT
- Stellar XLMUSDT
- Hedera HBARUSDT
- Uniswap UNIUSDT
- Aave AAVEUSDT
- Bittensor TAOUSDT
- Aptos APTUSDT
- Arbitrum ARBUSDT
- Optimism OPUSDT
- Injective INJUSDT
- Render RENDERUSDT
- Polygon (POL) POLUSDT
Want to see where leveraged traders would be forced out? Try the free liquidation heatmap with cascade checks and live liquidations.
Frequently asked questions
Is this liquidity heatmap and footprint chart really free?+
Yes. The heatmap, footprint chart, CVD, delta and fair value gap tools are free for Bitcoin, Ethereum and other coins and every other supported market. You only need a free Tradeskill account — no credit card, no trial that expires.
What is a crypto order book heatmap?+
A crypto order book heatmap paints the exchange's resting limit orders over time: each price level is coloured by how much size is waiting there, so walls of bids and offers show up as bright horizontal bands. Watching those bands build, hold or disappear as price approaches tells you where real liquidity is, which a candle chart cannot show.
Is it a free Bookmap alternative?+
It covers the core of what traders use Bookmap-style tools for — a resting-liquidity heatmap over time, large-trade bubbles and the live order book — and adds a footprint chart, CVD and scored fair value gaps on the same chart. It is an independent tool and is not affiliated with Bookmap.
Which markets are supported?+
31 markets: Bitcoin, Ethereum, Solana, BNB, XRP, Cardano, Gold, Avalanche, Chainlink, TRON, Polkadot, Litecoin, Bitcoin Cash, NEAR Protocol, Sui, Stellar, Hedera, Uniswap, Aave, Bittensor, Aptos, Arbitrum, Optimism, Injective, Render, Polygon (POL), Dogecoin, Shiba Inu, Pepe, Bonk, dogwifhat. All data comes from Binance USD-M Futures, including XAUUSDT for gold. US stocks are not supported because there is no free public order book or trade tape for them.
Where does the data come from?+
Directly from Binance Futures public market data: the full-depth order book (snapshot plus 100 ms diff stream) for the heatmap, the aggregated trade stream for the footprint and bubbles, and klines with taker buy volume for CVD and delta.
Why does the heatmap start empty?+
Binance does not publish historical order books, so the heatmap records the live book from the moment you open the page (keeping the last hour). Candles, CVD and fair value gaps load with full history immediately, and the footprint backfills the most recent trades.
How is the fair value gap score calculated?+
Each three-candle gap scores up to 25 points each for the displacement candle body vs ATR, its volume vs the 20-bar average, and net delta in the direction of the move, plus up to 25 for the footprint — stacked imbalances and how thin the volume was inside the gap. 60+ is shown as institutional, 75+ as strong.
Do I need to download anything?+
No. Everything runs in the browser on desktop, laptop or tablet. Sign in, pick a coin and the chart connects to the live feed.
Is this financial advice?+
No. Order flow shows what traders are doing, not what price will do next. Use it for education and practise your reads risk-free in the paper trading simulator before trading real money.
See the order flow everyone else pays for — free
Sign in (or create a free account in seconds) and the chart opens on BTCUSDT. Switch to any of the other markets from the coin menu.
Market data from Binance USD-M Futures public streams; Bookmap is a trademark of its owner and is mentioned only for comparison. Order flow is an educational tool, not financial advice — practise with the free paper trading simulator first.
